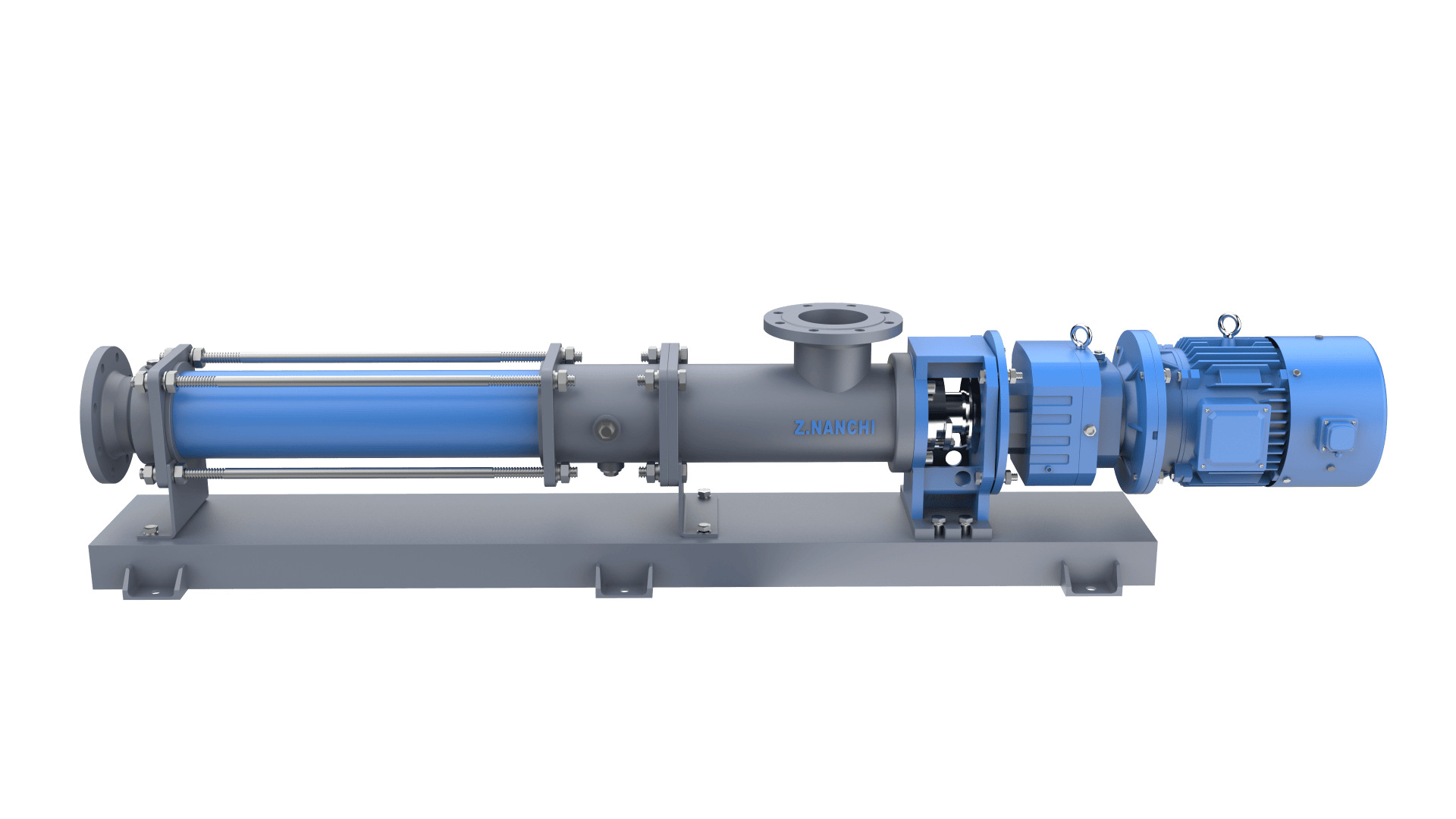

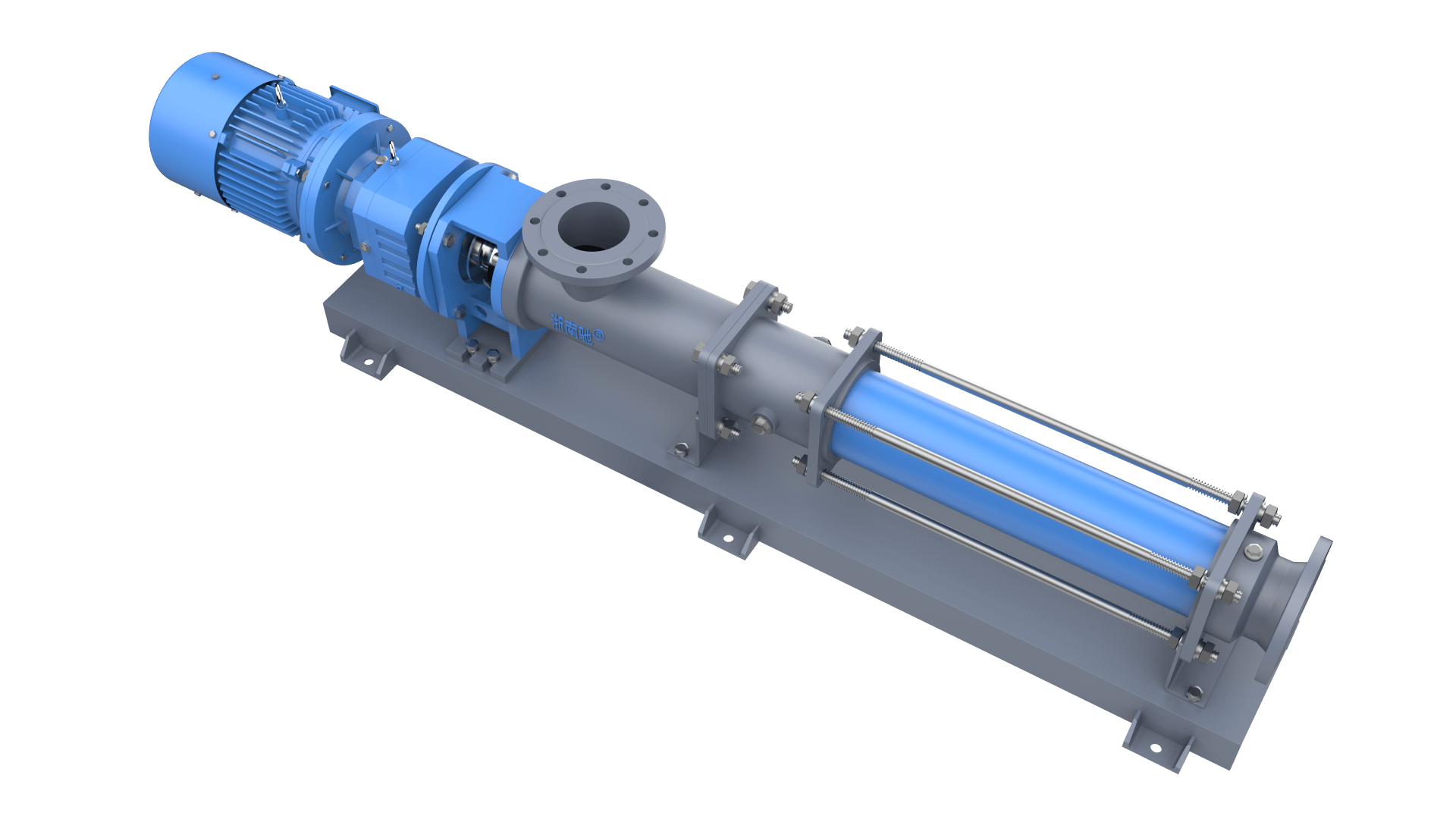

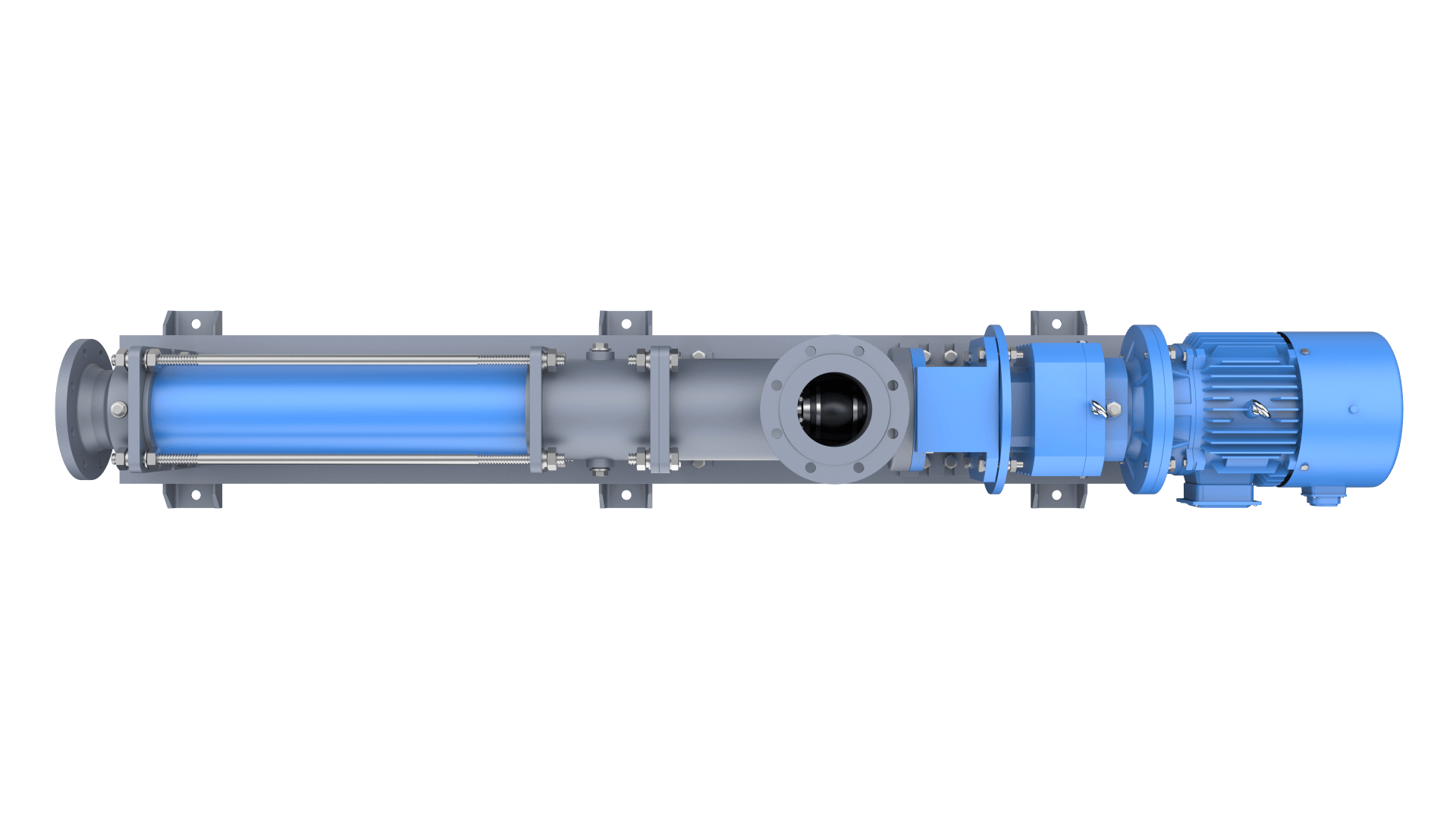

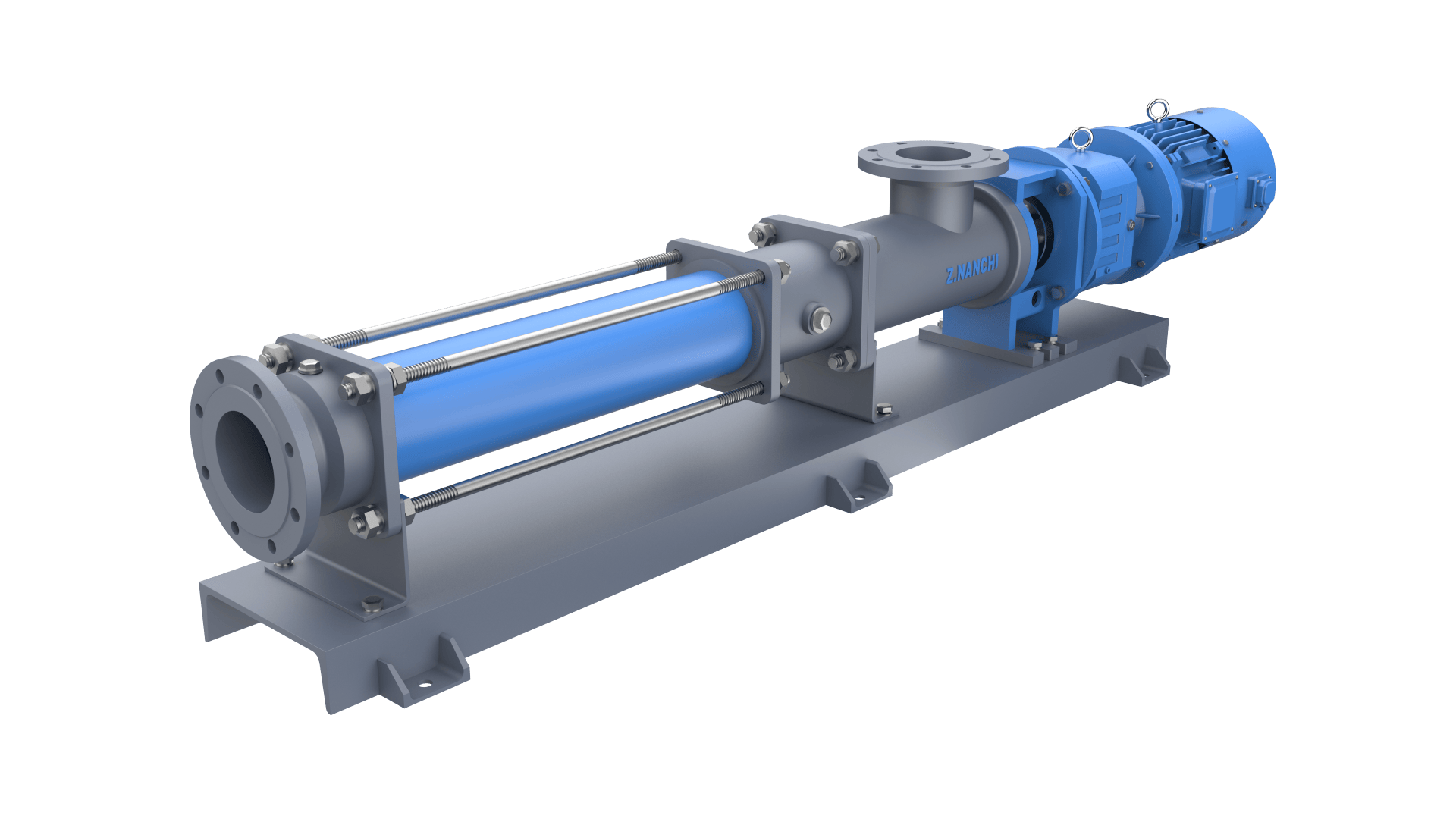

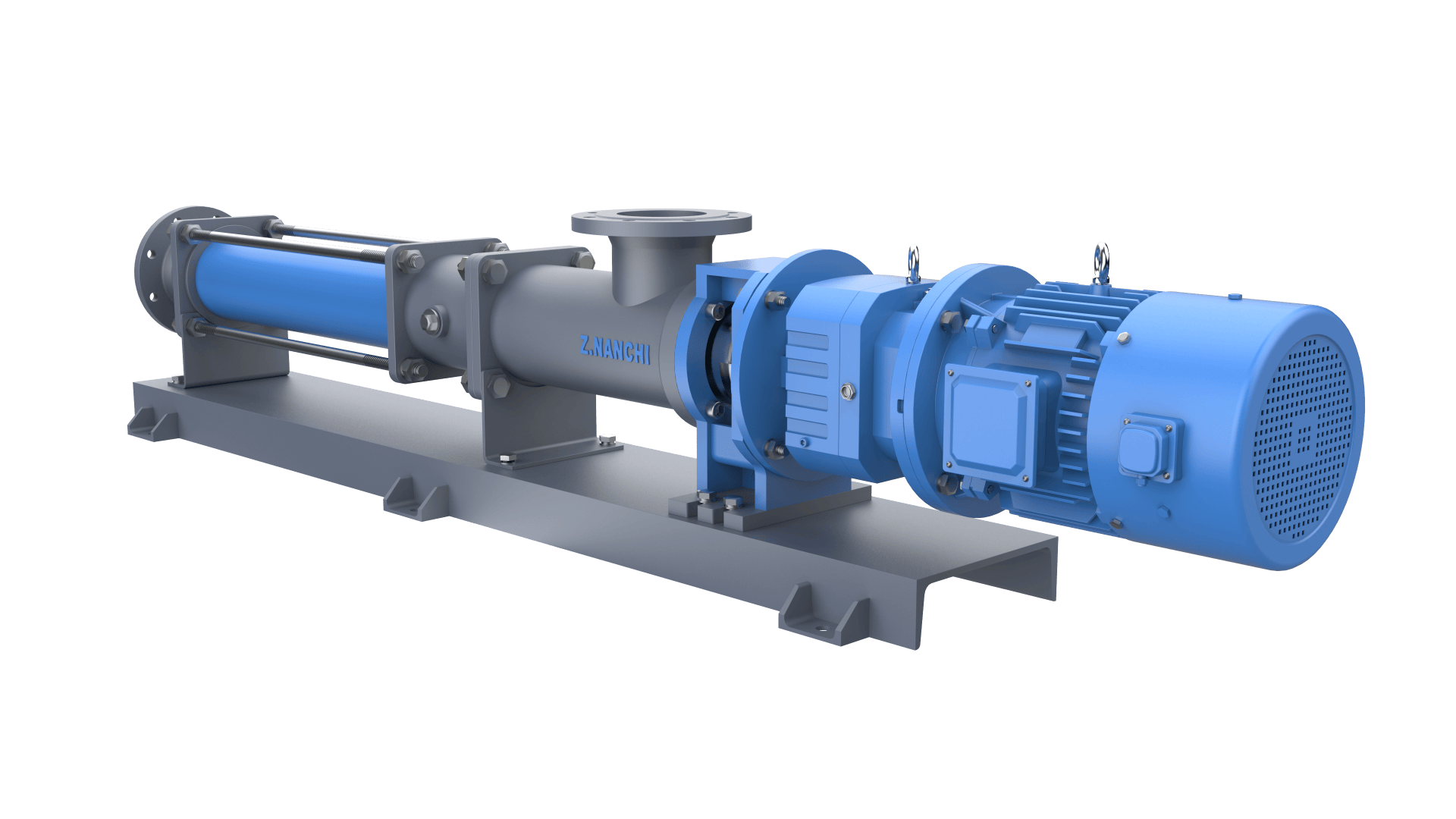

NG Standard Single Screw Pump
Product introduction
Classics Product
Z.NANCHI NG series is our general screw pump. This series of pump application is very broad, applies to almost all industries.
Single screw pump used to transport various viscosity and solid content of medium.
The pump type of versatility and other performance advantages, guarantee the whole pump system is economy and reliable line operation.
This pump type products must be suitable for your application.
Please contact us, we are glad to help you choose the best products!
Parameters
Capacity: 0.1m³/h ~ 500m³/h
Pressure: 4.8MPa or higher
Features and Advantages

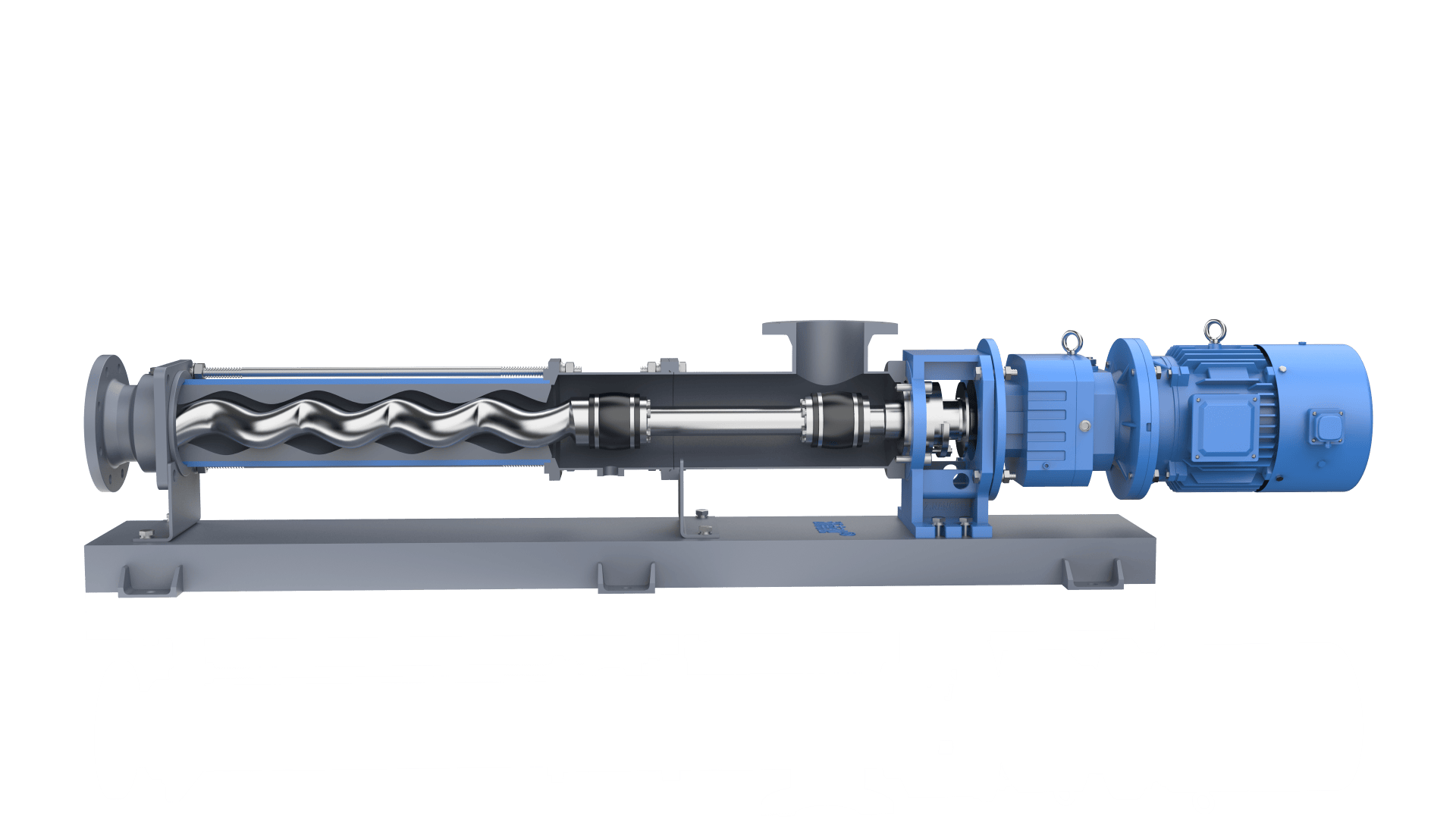

- All kinds of rotor/stator (S lead standard type, type L long lead, T ellipse lead standard type, P long ellipse lead).
- Used to transport all kinds of different viscosity, different solid content of the media
- low pulse, steady uniform flow, pressure.
- A variety of optional installation form.
- Through large diameter solids.
- Reversible, steering and transmission of the single screw pump direction.
Product Introduction
Driving Structure
Direct Connection
- Drive unit connected to the drive unit using plug-in, no additional configuration coupling.
- Single screw pump by the pool structure, drive directly flange connection, simple design.
- Using economic and convenient operation.
- Used to transport all kinds of different viscosity, different solid content of the media.
Bearing frame
- Strong load-bearing capacity, drive can be equipped with universal elastic couplings or pulley connections, with advanced design.
- Used to transport various media with different viscosities and solid contents.
